Optimising the price-performance ratio of solar thermal power stations

Optimising the price-performance ratio of concentrated solar thermal power stations is an interesting mathematics puzzle.

Fossil fuel power stations have traditionally been designed without the benefit of advanced compressor technology that achieves close to isothermal compression. Without this technology all designs necessarily aim to maximise the temperature at which fossil fuels are burned.

Optimising the price-performance of concentrated solar thermal power stations has two significant differences:
  1. New compressor technology allows optimisation without the need for extremely high temperatures and substantial waste heat being discharged as a result.
  2. Solar thermal energy able to be used in a solar thermal tower reduces as the temperature increases. At the maximum attainable temperature known as the "stall temperature" energy arriving in the collector is being re-radiated into space at the same rate as it arrives. No energy is available to be converted to electricity.
As a result of the last point above, an increase in efficiency that relies on a higher temperature will eventually result in less electricity being produced because less solar energy is being converted - even though the efficiency of conversion is greater. For instance 50 percent of 100 kilojoules is more than 75 percent of 60 kilojoules in the situation where 40 kilojoules are lost due to a higher temperature in the solar receiver.

This video describes the difference between steam turbine power plants and gas turbine power plants. Concentrated solar thermal power plants use the same technology without using fossil fuels as the source of thermal energy.

Steam power plants and compressed air turbines can only convert about 35% of the energy collected into electricity:
  • On the back end of the steam turbine the steam must be condensed back into water.  During this condensation process, heat is “rejected” up cooling towers and into the atmosphere, resulting in a loss of 30% to 40% of the original heat energy supplied to the system. More energy is then used in pumping the condensed water back into the boiler at very high pressure.

  • Compressed air turbines discard a large amount of energy collected in the exhaust flow out of turbine. More energy is used by the axial flow compressor that compresses air on input to the turbine.
"Solutions" focus on methods to make use of the heat energy wasted by these engines. One often-used approach is to build an entire steam power station behind a compressed air turbine generator! This "solution" is known as a combined-cycle gas turbine or "CCGT" power plant.

For reasons that are not clear solutions that simply avoid the waste of thermal energy in the first place are overlooked.

Adding a high-efficiency compressor to the front of a conventional axial-flow air compressor and turbine generator allows the exhaust to cool to ambient temperature with no heat energy wasted.

Hicor technology achieves a more efficient compression process
Hicor’s technology achieves a more efficient compression process by minimizing the temperature rise

Compression Basics

Compression Basics
The Hicor technology achieves a more efficient compression process by minimizing the temperature rise associated with compression, improving efficiencies over conventional compressors by 30% or more.
At its most basic, compression is a mechanism by which work is put into a fluid and results in an increase in pressure. Heat is also generated as a by-product of compression, which serves to make the process less efficient by turning some of the input work into heat instead of pressure. As the gas being compressed heats up further and further, the compression process gets less and less efficient.

Hicor’s technology achieves a more efficient compression process by minimizing the temperature rise associated with compression, improving efficiencies over conventional compressors by 30% or more.

Hicor’s proprietary compression technology provides a myriad of additional benefits as well, including fewer moving parts, less vibration and noise, and a variable pressure ratio. Finally, Hicor’s near-isothermal compression technology allows for compression ratios of 30 to 1 or higher, reducing system level complexity and resulting in lower capital and operating costs.

Positive Displacement Compression

The compression process can be displayed graphically, as in the pressure-volume (PV) plot shown below. The curves in a PV plot show how the pressure increases as volume decreases. For different compression processes, the curves will vary. The work of compression can be visualized as the area under the curve corresponding to a given compression curve.
All compression processes fall between two extremes: adiabatic, where no heat is exchanged with the outside environment and the energy put into the system remains internal; and isothermal, where energy is removed from the system in the form of heat and the temperature of the gas remains constant.

In practice, all compression processes fall somewhere between adiabatic and isothermal and are known as polytropic processes. To achieve a more highly efficient compression process, it is ideal to reduce the polytropic constant to as close to the isothermal process as possible, where the polytropic constant is 1.

The Hicor proprietary compressor design is capable of achieving polytropic constants as low as 1.06, improving efficiencies over conventional, near-adiabatic compressors by as much as forty percent.

Saturday, February 6, 2016

Would you be surprised if one day energy was free?

Part 1 - Canberra August, 2004

"I've always been really interested in recreating space phenomenon in the laboratory. It's very difficult to measure in space to measure the aurora although it is a true wonder in seeing these lights in the sky. But to simulate this in the laboratory, to do experiments on it and then try and understand what is happening I think for me is one of the greatest joys that we've been given", said Dr Rod Boswell.

Aurora - atmospheric plasma

First you make the plasma by zapping a gas with radio waves - "microwaving" it. The atoms change into electrically charged particles called ions. Cut the end of the tube and the ions all shoot out, creating thrust - plasma thrust.

"This is Wombat. It's called wombat because it's got four legs and sort of looks like a wombat. You can see here we create a plasma, this is the glowing gas you can see in the end there. So the plasma's created here then moves into space. And if you look in there, ah, it always amazes me. There's this blue column of plasma which is shooting out from the plasma source," Rod explained.

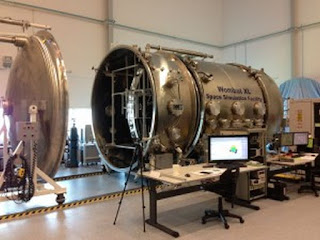

Wombat - plasma generator research device

Rod made quite an impression around the world with his Wombat plasma generator. NASA took some of his ideas to design tiny satellite guidance thrusters.

Anxious to find new ways to make plasma thrusters work better, Rod assembled a team of young physicists, and encouraged an atmosphere of ideas and creative thought.

"I came here to ANU because I thought that this is one of the top laboratories in the world. The environment is just perfect and it's really good for creativity," explained Dr Christine Charles.

Professor Christine Charles
Professor Christine Charles
Head of the Space Plasma, Power and Propulsion Laboratory
Australian National University
Christine, freshly arrived from France, soon became inspired by Rod's enthusiasm for plasmas, and for the forces in the universe that generate them.

Rod had recently commissioned a new, improved version of wombat, and Christine was eager to try it out, to see if she could, amongst other things, recreate an aurora in the lab. One day, impatient for results, Christine decided to play with the settings. She was amazed with what happened next.

"I'll show you. Normally this is standard plasma, but on the day, instead of doing what everyone does which is turn the knob on, turn the power on, and see what happens, I did the opposite. I turned the power down and I reduced the flow down. So then you need to increase the magnetic field to be able to contain it. So you do that, you make the measurements with the ions... Look at this, there it is. The hot ions, the plasma is suddenly accelerating, all by itself. It appeared to be in free fall, travelling much faster then I'd ever seen before. And I kept getting this result, and I thought, oh, this is like, oh! What's happening!" Christine recalled.

"The plasma behaves like water tumbling over a cliff, getting faster as it drops. And, just like an aurora, it seems that the plasma actually makes the 'cliff' - all by itself. It's almost magic."

"What Christine found is that under certain conditions instead of just flowing out smoothly it creates this jump, and the ions fall down this, and it's like having two electrodes that accelerate the ions like in an accelerator, but there are no electrodes! The plasma itself forms an acceleration mechanism. It's actually a wonder," said Rod.

Tuesday, February 2, 2016

Battery storage of renewable energy

You can increase the financial return from an investment in a lithium ion battery pack by your choice of where to use the energy it stores.

For instance if the retail price of electricity is 20 cents per kilowatt-hour then using stored solar energy to replace the purchase of electricity you use in your home will save you 20 cents for each kilowatt-hour your battery pack delivers.

Tesla’s new “Powerwall” home battery will cost $3,500 for 10kWh units
Tesla’s new “Powerwall” home battery will cost $3,500 for 10kWh units

If you chose to pay for the lithium ion battery pack to be built into an electric vehicle then the financial return may be far greater:

  • Suppose a small electric vehicle can be fully charged in 7 hours at the rate of 2.4 kilowatts per hour and travel about 150 kilometres on that charge.
  • The total amount of energy stored is 7 hours times 2.4 kilowatts which is 16.8 kilowatt-hours for 150 kilometres, or 11.2 kilowatt-hours for each 100 kilometres.
  • Suppose a similar small petrol car would use 10 litres of petrol per 100 kilometres costing about $1 per litre. At this price of petrol the fuel cost is 10 litres times $1 per 100 kilometres which is $10.
  • Choosing to put your lithium ion battery pack investment in a small car could save you $10 for each 11.2 kilowatt-hours of energy stored in it.

This is a saving of $0.89 per kilowatt-hour which is more than 4 times the saving of $0.20 per kilowatt-hour if you use the lithium ion battery pack to replace electricity you use in your home.
